Designed for professional live production, Blackmagic Studio Camera 4K Pro G2 introduces robust 12G-SDI and 10G Ethernet connections, enabling reliable long-distance camera-to-switcher workflows. The camera features a 12G‑SDI output and a 12G‑SDI program return input that includes camera control, talkback and tally, along with the familiar HDMI output with control features. A pair of XLR inputs (analog, switchable between mic and line levels) and a 3.5mm stereo input support versatile audio setups, while two USB Type‑C 3.1 Gen 1 ports (up to 5Gb/s) expand external recording and focus/zoom demand connections. Blackmagic Control Protocol over SDI and HDMI facilitates external control when used with an ATEM switcher and the ATEM Software Control or ATEM Camera Control Panel.

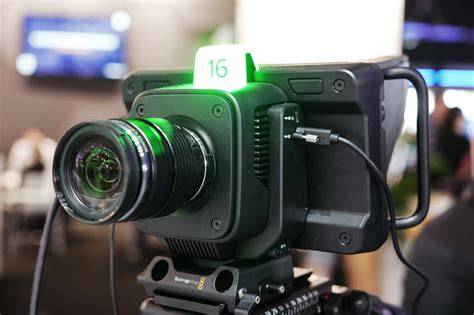

In the family of compact studio cameras, Blackmagic Studio Camera 4K Plus G2 inherits the ethos of “miniaturized professional” design. It packs digital film camera-grade dynamic range and color science into a portable form factor, with an ISO ceiling up to 25,600 that enables compelling imagery in dim venues or even moonlit environments. Advanced features include tally, built‑in color corrector, Blackmagic RAW recording to USB disks, and more, making it a flexible choice for run-and-gun or fixed-location productions alike.
For collaborations over IP and fiber-like reliability at a lower cost, Blackmagic offers the Studio Converter with 10G Ethernet. This enables sending all camera signals over a single Ethernet IP link, consolidating camera feed, return program, timecode, reference, tally, talkback and control down one cable-an approach that echoes the efficiency of SMPTE fiber but leverages the more affordable copper Ethernet standard. The Studio Converter also allows breakout of all video, audio and talkback connections at the studio end, simplifying infrastructure and routing.
Meanwhile, the ATEM Streaming Bridge expands the ecosystem by converting and transmitting video streams from ATEM Mini Pro to SDI and HDMI displays at remote locations. Using advanced H.264 codecs, it provides higher quality at low data rates, supporting global collaboration among broadcasters and remote production teams. This capability is particularly valuable for establishing networks of ATEM Mini Pro remote broadcast studios across the globe.
Key specifications and features
- 12G-SDI output and 12G-SDI program return input with camera control, talkback and tally
- HDMI output with control features
- 2 x XLR analog inputs (mic/line switchable)
- 1 x 3.5mm stereo input
- 2 x USB Type‑C 3.1 Gen 1 (up to 5Gb/s) expansion ports
- Blackmagic Control Protocol over SDI and HDMI for external control with ATEM switchers
- Built-in color corrector and Blackmagic RAW recording to USB disks
- ISO up to 25,600 for high-sensitivity imaging
- Compact, portable design mirroring larger studio cameras in a smaller form factor
- Tally, camera control, and other advanced studio features
Comparative overview: 4K Plus G2 vs 6K Pro models
- Sensor and mount: 4K Plus G2 emphasizes a compact design with 4K capabilities and classic studio workflows, while 6K Pro expands to a larger 6K Super 35 sensor and EF lens mount for true cinematic visuals in live production conditions.
- Connectivity: Both lines offer robust SDI and IP options, but the 6K Pro emphasizes EF mount compatibility and broader sensor size for depth of field and image character, complemented by built-in ND options for bright environments.
- ISO performance and dynamic range: The 4K Plus G2 features a capable ISO ceiling with strong performance in low light; the 6K Pro aims for cinematic latitude with a larger sensor and enhanced native color science, benefiting images in challenging lighting.
- Control and integration: Both systems support external control via ATEM ecosystems and Blackmagic control protocols, enabling synchronized operations with switchers and control panels.
Practical uses and workflows
In live studio settings, the 4K Plus G2’s compact design allows quick setup in constrained spaces, while maintaining the professional studio feature set such as tally, color correction, and Blackmagic RAW capture to USB disks. For in-venue productions requiring cinematic look or shallow depth of field, the 6K Pro with its larger sensor and EF mount provides enhanced image aesthetics, especially when combined with appropriate lenses and ND control for varied lighting scenarios.
When streaming to the internet is required, the built-in streaming capability of compatible Blackmagic cameras and the Studio Converter’s IP-based workflow enable flexible, scalable remote production setups. The ATEM Streaming Bridge further extends this by converting H.264 streams into SDI/HDMI for distribution across venues or networks, facilitating global collaboration among broadcasters and remote studios.
Usage tips
- Utilize built-in ND filters to control exposure in bright outdoor shoots or high-contrast indoor environments.
- Leverage 12G-SDI for long cable runs and robust, low-latency signals to switchers or recording devices.
- Pair with ATEM Software Control or ATEM Camera Control Panel for streamlined camera control and tally management.
- Exploit Blackmagic RAW recording to USB disks to simplify post-production workflows with high-quality footage.
