Revolutionize your workspace organization with our tool storage dxf collection. Specifically, we tailored this range for maximum efficiency and precision. Furthermore, whether you need plasma dxf files for heavy-duty metal racks or CNC Files for Wood for wooden organizers, this collection offers the ultimate solution. Moreover, woodworkers choose our CNC Router Files for their precision. In particular, we design each project for plywood and MDF boards. Similarly, metal fabricators rely on our dxf files for plasma cutting for heavy-duty applications. Additionally, we test every design to ensure a seamless fabrication process. Consequently, you can download your tool storage dxf files today and enjoy a productive workspace.

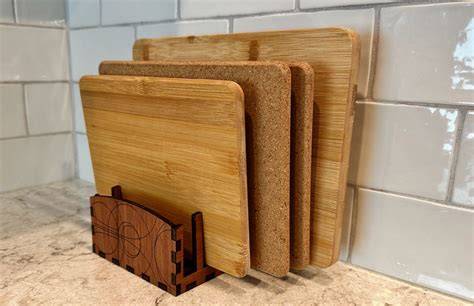

Overview of Cutting Board Holder DXF Files
The cutting board holder is designed to organize kitchen or workshop spaces by securely holding multiple boards and keeping them accessible. The DXF file format supports precise 2D vector geometry suitable for plasma, CNC, and laser cutting workflows. This section outlines the key dimensions, typical materials, and recommended tolerances to ensure a robust fit during fabrication.
Key Dimensions and Tolerances
- Overall length: tailored to accommodate standard cutting boards with a range from 200 mm to 420 mm depending on model.
- Holder width: designed to fit common board thicknesses, typically 12 mm to 25 mm.
- Depth: optimized for stability, generally 100 mm to 180 mm depending on mounting method.
- Inter-board spacing: set to allow easy removal while preventing warping, usually 30 mm to 40 mm.
- Material thickness for the base: 3 mm to 6 mm metal or 6 mm to 12 mm wood, adjustable by model.
- Clearance for mounting holes: standard countersunk 4.5 mm or 5 mm screws with 50 mm to 70 mm hole spacing.
Materials and Compatible Processes
- Wooden versions are optimized for plywood and MDF, with cut paths designed for clean edge finishes.
- Metal versions support plasma cutting and laser cutting, with tab-and-slot or welded joints as appropriate.
- All files include nested layouts to minimize waste and improve material utilization.
Assembly and Fastening
Assembly approaches vary by material. Some models use simple butt joints with adhesive and screws, while metal designs may incorporate tabs, slots, and rivets for added rigidity. The DXF and DWG files include precise pocket depths, screw hole locations, and alignment guides to facilitate rapid assembly.
- Prepare the base surface and verify flatness before assembly.
- Align component pieces using assembly marks present in the DXF/DWG layers.
- Secure with appropriate fasteners for the selected material (wood screws for plywood/MDF; machine screws or rivets for metal).
- Test the fit by placing cutting boards and ensuring smooth removal without binding.
File Formats and Their Use
- DXF: Ideal for plasma cutting, waterjet cutting, and CNC routing across both wood and metal substrates.
- DWG: Widely supported for CAD workflows, useful for editing dimensions and exporting to other CAM programs.
- DTF: Design Transfer Files for quick integration with specific CNC or laser systems, if applicable to your setup.
Practical Tips for Production
- Use perforated or vented designs if moisture management is a concern in kitchen environments.
- Incorporate anti-slip strips or rubber feet to prevent movement on work surfaces.
- Label sections or compartments for different board types (e.g., bamboo, plastic, hardwood) to maintain organization.
Variations for Different Workshops
For wooden organizers, CNC Files for Wood provide precise toolpaths tailored to plywood and MDF. For metal racks and heavy-duty applications, plasma dxf files ensure robust performance under demanding use. Each project is tested to ensure a seamless fabrication process, from digital design to physical part.
Quality Assurance and Testing
Each design is tested to ensure a seamless fabrication process, with checks for fit, tolerances, and assembly ease across materials. The collection emphasizes repeatability across batches and compatibility with common CAM software and cutting machines.
Download your tool storage dxf files today to begin optimizing your workspace with durable, accurate, and easy-to-assemble cutting board holders.
Review: Fikoksol Cutting Board Organizer, [2-Pack] Cutting Board Holder Rack
Recommended Data Table
| Model | Overall Length (mm) | Board Thickness (mm) | Depth (mm) | Hole Spacing (mm) | Material |
|---|---|---|---|---|---|
| Mini | 210 | 12-20 | 100 | 60 | Wood |
| Standard | 320 | 15-25 | 140 | 70 | Metal |
| Wide | 420 | 18-25 | 180 | 80 | Wood/Metal |
