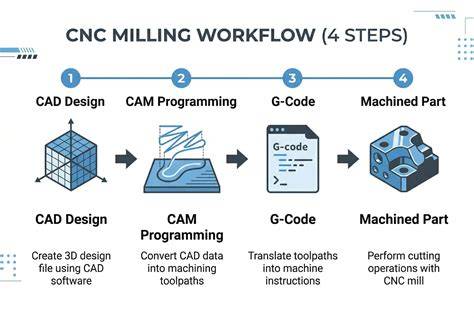

Most CAD and CAM software will open, create and edit DXF files. As mentioned, DXF Files act as CNC Patterns that guide your cnc machine on where to cut. There’s a lot of fun to be had with decorative and artistic CNC projects. Many times, the hardest part of these kinds of projects is coming up with artwork. It’s line art, which is relatively straightforward to convert to CAD and thence to CAM and finally g-code. But getting decent line art to start can be a pain.
We divide the files into Categories like Animal, Holiday, and Vehicles. I have a LARGE library of free dxf files that you’ll be able to download above. I have big plans for the page, so stay tuned. The first thing you will want to do once you download a Free DXF file is to unzip the file with a file extraction program. Once you unzip the file folder you will see two files available. You will primarily be focused on either importing or opening the Free DXF file into your CAM or CAD based software program.
I know a lot of individuals that are new to the CNC industry like to try Inkscape but I have not had very good success with importing and opening my DXF files into that particular program. If you are importing the Free DXF file or opening it into your CAM software you will want to be sure to disable your offset tooling function. If you are unable to disable the offset function altogether then you will want to reduce your offset value as small as it will go (.001"). The reason to do this is you want the cut to go right down the centerline of the vectors in these files. The difference is dramatic and alarming.
If you zoom in on the other image included in the DXF file you imported you will see that it does not contain any single lines. Now that you are familiar with some of the basics of importing your DXF file you will want to either delete the closed path or open cut path version of the design. Now if you are operating a laser or waterjet based CNC cutting system you will want to utilize the closed cut path version of the design. If you plan to cut the our DXF files with a CNC plasma cutting system it is recommended that you use a plasma cutting system capable of cutting at or below 40 amps. Fine tip consumables between 20 and 40 amps will yield excellent to very good results. For the very best results make sure to do several straight line test cuts to minimize the cut width in the material that you will be cutting. Every plasma cutting system is different and the only true way to get truly amazing results is through trial and error. However, some are simply better than others. And some contain more varied and intricate file designs.
Did we miss any? Comment below with your favorite DXF file sharing sites and resources. Now it’s time to seriously consider a laser capable of cutting these files. Our patented, high-power CO2 laser systems are ideal for your laser needs. If you have design capacity, marketing, and a business foundation for sales, laser cutting offers a unique opportunity. Adding an innovative Open Architecture Laser Machine will allow you to broaden your offerings. By engraving and cutting unlimited products, you can capture a wide range of new market demands. As many business owners know, this has the potential to add revenue and profit at a minimal cost increase.
Large-Object Laser Cutting and Engraving Markets - Fast Growing, Less Competitive. Vector files combined with large-format Open Architecture laser machines, large-bed CNC machines, and plasma machines are a game changer. They have enabled small business owners to explore the large-size personalization market. And they have increased the potential for small players to meet customers’ increasingly nuanced needs. The potential for large object laser engraving and cutting opens vast opportunities in both B2B and B2C markets.
For businesses, patented open-architecture laser machines can transform large, heavy objects into customized masterpieces catering to manufacturing, construction, and interior design industries. On the consumer side, personalized large-scale items like furniture, signage, musical instruments, and sporting goods are cherished. They can meet emotional needs and add significant value. These markets are less competitive, fast-growing, and still developing, giving entrepreneurs and business owners a golden opportunity. We are embracing vector files with our versatile laser machines. They can help position you at the forefront of innovation and customer satisfaction.
Why Use Vector Files for Laser Engraving, Cutting, Plasma, and CNC Cutting? Vector files are scalable. You can shrink them to cut or engrave a keychain. Or you can enlarge them to cut or engrave into a large sign, furniture, or wine barrel. Regardless of the output, the quality of the details will not change. Understanding standard vector file formats is crucial when working with CNC, plasma, and laser engraving cutting. The most widely used formats are SVG (Scalable Vector Graphics), DXF (Drawing Exchange Format), and AI (Adobe Illustrator).
SVG Files SVG files are popular due to their compatibility with various design software and web applications. DXF Files The DXF format, created by Autodesk, is the industry standard for CAD software and CAD drawings. DXF files are compatible with many CNC and cutting machines and relied on by users of numerous CAD programs. You can create a DXF file yourself using Adobe Illustrator, AutoCAD, and other popular software platforms. DXF files can also be converted to G-Code as needed with relative ease. AI Files AI files are proprietary to Adobe Illustrator and favored for their robust design capabilities and precision. Mastering these three common formats will ensure seamless integration with cutting machines. They can help you achieve precise, high-quality project results when used properly.
Vector files are made up of pixels. They use mathematical equations to create precise paths and shapes, ensuring crisp and accurate cuts every time. They are scalable without losing quality, making them ideal for small and large projects. Standard formats include SVG, DXF, and AI, which are compatible with most cutting software. DXF designs offer a variety of downloadable files formatted explicitly for CNC, laser, and plasma cutting. Truly, their artistic versatility and suitability for applications like metal art decor and custom projects are unmatched. Thankfully, free DXF files for download don’t differ from original creations. They use the standard DXF format that your cutting machine will expect upon output. Much like a CAD file, these free designs are intended to help your process. They can be loaded, customized, and used as a machine reference during fabrication without worry. But some practice may be required.
Learning to work with vector files opens up endless possibilities for creating intricate designs. With the power of vectors, bringing your creative visions to life can be turned from idle daydream into reality. The file creation process is one of the most significant concerns for businesses purchasing a laser. If you are looking at investing in a laser, you are more than likely comfortable operating a computer. You probably also have endless ideas about projects you want to create. But how on earth are you going to make the fits? It’s normal to lack design confidence. The last thing you want to do is send a file to your laser that isn’t set up correctly. Adobe Illustrator is particularly recommended for resizing art designs while using DXF file downloads. These are designed as CNC, plasma, and laser cutting and engraving files. All vector files can be used for CNC cutting and plasma cutting.
Attention: Please Double-Check with the Preview Before Engraving! Using vector files for laser engraving requires careful attention to design details. It is particularly important to ensure that all lines and shapes are closed. Laser engraving operates by filling in areas within closed curves. If your design has open lines or gaps, they won’t recognize them as areas to engrave. This can lead to incomplete or unintended results. Before hitting the export button on your DXF file, verify your file is as expected. Double-check that your vector paths are fully enclosed to achieve precise and consistent engravings. This practice not only enhances the quality of your work. It also maximizes the efficiency of your laser machine. With precision and efficiency at your disposal, you can bring your intricate designs to life with perfection.
Scale Up to Large Size of Cutting and Engraving. One of the advantages of using vector files in laser cutting and engraving is their inherent scalability. This means you can seamlessly resize your designs without losing quality or detail. Whether you are crafting something as small as a keychain or as large as an outdoor sign, vector files maintain their precision and sharpness. This scalability is crucial for diverse projects, allowing you to create intricate patterns and detailed engravings of any size. By leveraging vector files, precision is the name of the game. You can ensure that every cut and engraving, regardless of scale, is executed with the highest accuracy and excellence. This will ensure your creations stand out and your professionalism is on full display.
Large laser machines are rapidly gaining ground in the market. They often replace or complement CNC machines and plasma cutting due to their speed, precision, and cost-saving abilities. These versatile laser engraving and cutting machines can handle countless materials. This includes the likes of wood, acrylic, and plastic. They can also handle countless sizes, engraving anything from keychains to furniture, doors, windows, and commercial signage. They are perfect for a wide range of CNC projects. CNC routers can also benefit from the extensive libraries of free laser-cut and free DXF file downloads available. These files cater to hobbyists and professionals, enhancing CNC designs with diverse and accessible templates. They open doors to expansive markets with various DXF and laser cutting designs. Leveraging this technology can significantly boost your revenue per square foot, especially in prime, high-traffic locations. Upgrade to a size-unrestricted laser machine to truly boost your benefits. With it, you can tap into these lucrative opportunities and stay at the forefront of the laser industry!
Do you ever have a part or pattern and need a DXF file super fast?
Interested in additional resources to jumpstart your small business? Contact us today for a FREE business growth guide! It is a great accompaniment to our DXF file free download guide! AP Lazer’s laser engraver cutter is designed for wood, glass, mirrors, granite, and signs. Our patented design offers limitless application with no size, weight, or height limitations. To learn how to explore new markets with AP Lazer, please schedule a live demo with us.
- DXF basics for CNC Understand the role of DXF as a bridge from design to G-code.
- Import/export considerations Disable offset tooling or minimize offsets to center cuts.
- Choosing the right cutting method Open vs closed paths for laser, waterjet, plasma, and CNC routing.
- Vector formats Compare SVG, DXF, and AI for compatibility and scalability.
- Quality checks Ensure vectors are closed and preview before engraving.
