SketchUp for beginners is about learning the essential tools and workflow to create 3D models efficiently. This wikiHow-style guide summarizes basic actions you’ll perform as you start modeling, from locating the interface elements to drawing, placing text, and managing your project.
Getting oriented in the SketchUp interface

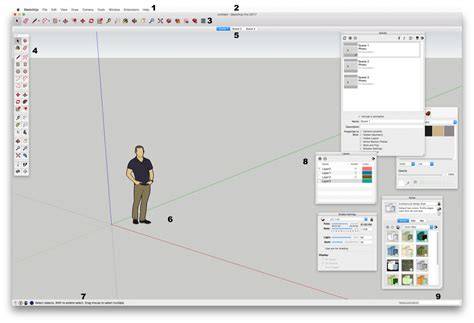

On the left side of the page, you'll see a vertical column of icons. On the right side of the page, you should see another vertical column of icons. You'll find the status bar in the lower-left side of the screen. In the lower-right corner of the page, you'll see a set of dimensions pertaining to your currently selected area. SketchUp has a huge library of different models which you can add to your project.
These descriptions point to common UI regions you’ll frequently reference as you model. The left toolbar typically houses drawing and modification tools, while the right toolbar and status indicators help you monitor measurements and context while you work.
Starting a new model and basic drawing
If you want to free-draw your structure's base, click the pencil icon on the left side of the page, click the pencil which appears in the pop-out menu, and click and drag to draw. This tool resembles a box with an upward-facing arrow in it.
Start Modeling: Click Start Modeling to begin your session and establish the initial geometry of your project. From here, you can continue to refine shapes and transitions between components as you build the model.
Adding text and annotations
Save your project. Click on the letter 'A' in the "tools" menu. Then just click the place you want to place the text. This creates simple annotations to convey labels or notes directly on the model.
Using the offset tool and managing geometry
Click on the offset tool. Then click the line you would like to offset. This allows you to create parallel outlines and thickness variations around edges, which is useful for creating walls, grooves, or recesses. Sometimes deleting one line from your 3D model can erase an entire face, so use offset and erasure operations carefully to preserve your design intent.
Saving and managing projects
Save your project to ensure you don’t lose progress. Regular saving helps protect your work as you experiment with different configurations and iterations. You can also organize your model into components and groups for easier editing later on.
Tips for beginners
- Familiarize yourself with the two main tool columns and the status/dimensions indicators to keep track of measurements as you model.
- Use the pencil tool for free-drawing to establish the base geometry before adding depth with extrusion or push/pull operations.
- Place text sparingly to annotate key features, especially in larger projects where multiple components are interacting.
- Experiment with the offset tool to refine dimensions and create consistent margins or wall thickness.
- Regularly save your work and consider using components for repeated elements to speed up modeling and maintain consistency.
04 Introduction to Sketchup Interface | Mac
As you gain experience, you can expand into more advanced features such as push/pull, groups and components, materials, layers, and rendering workflows to bring your models to life with color, texture, and lighting.
